Accurate electrode placement is critical in ensuring reliable cardiac monitoring. Among the most widely used configurations in clinical settings is the 5 lead EKG placement, which provides a balanced combination of simplicity and diagnostic capability. This system is commonly deployed in telemetry units, operating rooms, and intensive care environments where continuous monitoring is essential. For biomedical technicians and clinical engineers, a deep understanding of correct placement is vital not only for patient safety but also for ensuring that monitoring equipment functions to its full potential.
Why 5 Lead EKGs Are Widely Used
The 5-lead system is a standard in many hospitals because it offers flexibility and enhanced monitoring capabilities without the complexity of a full 12-lead setup. It allows clinicians to view multiple monitoring leads, including lead II, which is especially useful for rhythm interpretation and arrhythmia detection.
From a biomedical engineering perspective, understanding the clinical applications helps ensure proper equipment calibration, troubleshooting, and staff training.

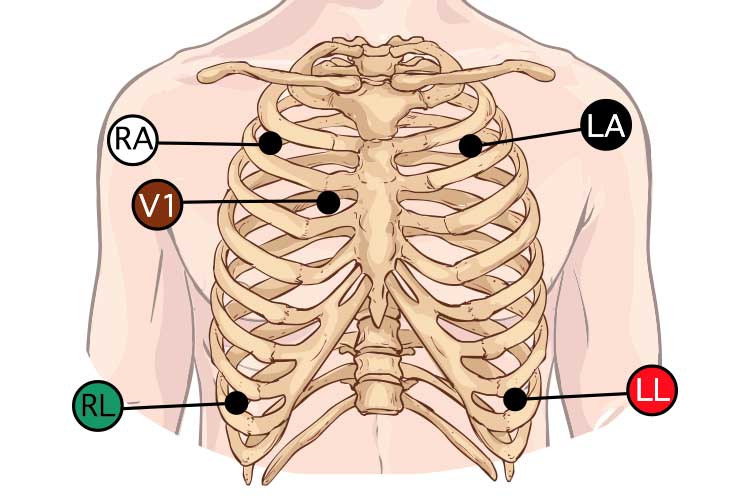

Placement Overview
Correct placement of the five electrodes is the foundation for reliable signal acquisition. While specific facility protocols may vary slightly, the general positioning is as follows:
- Right Arm (RA) – just below the right clavicle.
- Left Arm (LA) – just below the left clavicle.
- Right Leg (RL) – lower right abdomen, serving as a ground.
- Left Leg (LL) – lower left abdomen.
- Chest (C) – typically at the V1 position (fourth intercostal space, right sternal border).
This arrangement provides consistent monitoring of limb leads and one precordial lead, making it especially valuable in long-term monitoring scenarios.
Clinical Applications
- Telemetry Units: Continuous monitoring for arrhythmias and ischemic changes.
- Critical Care: Enables round-the-clock assessment of cardiac function in ICU patients.
- Perioperative Monitoring: Standard in operating rooms to track patient stability during procedures.
- Emergency Settings: Offers rapid deployment for cardiac assessments in transport or triage environments.
For HTM professionals, being familiar with these use cases ensures better communication with clinical teams and alignment of equipment configurations with patient care needs.
Common Errors in Electrode Placement
Despite the relative simplicity of a 5-lead setup, misplacements occur more often than many realize. Errors can result in poor signal quality, false alarms, or missed arrhythmias. Common mistakes include:
- Reversed limb leads, leading to inverted waveforms.
- Incorrect chest lead positioning, which can obscure important ST-segment changes.
- Poor skin preparation, resulting in signal artifacts and reduced electrode adhesion.
Technicians should emphasize proper training for clinical staff and perform regular checks to ensure consistency in practice.
The Role of Biomedical Technicians
Biomedical equipment technicians and clinical engineers are critical in supporting accurate EKG monitoring. Their responsibilities extend beyond device repair—they ensure that equipment is properly maintained, staff are adequately trained, and consumables such as electrodes are replaced as needed.
Key responsibilities include:
- Preventive maintenance to ensure reliable performance of EKG monitors.
- Verification of signal quality during equipment testing.
- Providing technical guidance on best practices for electrode application.
By maintaining a strong understanding of electrode placement, biomed teams can bridge the gap between technical reliability and clinical accuracy.
Best Practices for Ensuring Quality Readings
To maximize the accuracy of 5-lead monitoring, biomedical professionals should encourage and reinforce the following practices:
- Consistent training: Standardize placement across departments to reduce errors.
- Skin preparation: Clean and dry the skin, and shave excessive hair to improve adhesion.
- Regular audits: Monitor for recurring errors in placement or equipment setup.
- Use of quality consumables: Ensure electrode pads are fresh and properly stored to prevent degradation.
These measures not only improve diagnostic accuracy but also reduce staff frustration caused by false alarms and poor trace quality.
Conclusion
For healthcare facilities, proper use of the 5-lead system represents an essential balance between diagnostic depth and operational simplicity. Biomedical technicians and HTM professionals play a vital role in ensuring that monitoring systems are optimized, errors are minimized, and patient outcomes are supported through reliable cardiac assessment.
